St Paul Episcopal Church

1710 East Superior Street
Duluth, MN 55812

Builder: M.P. Möller (Opus 8923, 1956)
Manuals: 3
Ranks: 35
Pipes: 2156

Action: Electro-pneumatic
--Organ Historical Society Organ Database.
Last Update: 10/2013

Designed by Arthur Jennings.
2001: New blower and reservoir.
2004: SSL combination action with 64 memory levels along with new drawknobs.
2009: Reservoirs releathered. (Bill Percy via Velda Bell)
2015: Shifters repaired
-- Bombarde/Tuba information from Tom Hamilton, Director of Music, 7/19/2017
-- Photos from Facebook and personal visits
-- Stoplist taken from console and chamber examination, 1/5/2018
-- Facade likely from previous Casavant organ; pipes do not currently play



GREAT ORGAN
8' Diapason, 61
8' Principal, 61
8' Hohlflute, 61 (in Choir)
4' Octave, 61
4' Nachthorn, 61 (in Choir)
2-2/3' Twelfth, 61
2' Fifteenth, 61
2' Mixture IV, 244
8' English Tuba (Ch)
Chimes (prepared)
Gt to Gt 16, 4, Unison Off
SWELL ORGAN
16' Flute Conique, (TC)
8' Geigen Diapason, 68
8' Gedeckt, 68
8' Salicional, 68
8' Voix Celeste, 56
8' Flute Conique, 12 (ext)
8' Flute Celeste, 56
4' Geigen Principal, 12 (shifters)
4' Flute, 12 (shifters)
2-2/3' Nazard, (FC ext)
2' Flautino, 12 (FC ext)
2' Plein Jeu III, 183
16' Fagotto, (TC, shifters)
8' Trumpet, 68
8' Oboe, 68
4' Clarion, 12 (shifters)
Tremulant
Sw to Sw 16, 4, Unison Off
CHOIR ORGAN
8' Viola, 68
8' Koppel Flute, 68
8' Spitz Flute, 68
8' Unda Maris, 56
4' Spitz Principal, 68
4' Wood Flute, 68
2-2/3' Nazat, 61
2' Doublette, 61
1-3/5' Tierce, 61
8' English Tuba, 68
Tremulant
Ch to Ch 16, 4, Unison Off
PEDAL ORGAN
32 Resultant (Contrabass + Bourdon 10-2/3')
16 Contrabasse, 32
16 Bourdon, 32
16 Gedeckt, (SW) 12
16 Contre Gambe, (SW) 12
8 Principal, (ext) 12
8 Bourdon, (ext) 12
8 Gedeckt, (SW)
4 Choralbass, (ext) 12
4 Bourdon, (ext) 12
16 English Tuba, (Ch) 12
8 English Tuba, (Ch)
4 English Tuba, (Ch)
Chimes (prepared)

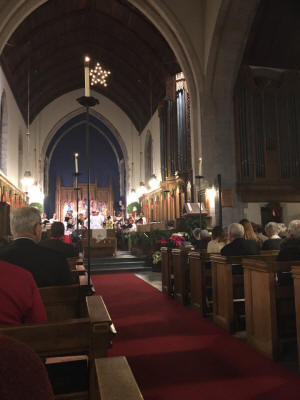

Console in chancel on left, facing facade. None of the facade pipes speak (although they once did). Behind chancel facade are Great and Pedal. Swell is behind, with Choir above Swell.
